Understanding Retaining Walls: The Backbone of Modern Earth Retention
What Is a Retaining Wall?
A retaining wall is a structure designed to hold back soil, rock, or other materials, preventing downslope movement or erosion while providing support for vertical or near-vertical grade changes. Think of it as an engineered barrier that allows us to create usable land on slopes, build roads through hilly terrain, and protect properties from landslides.
The fundamental challenge in retaining wall design is simple: the retained soil constantly wants to move forward and downslope due to gravity, creating lateral earth pressure that pushes against the wall. This pressure is greatest at the bottom and increases with wall height. Without proper design, this force can push the wall forward or even overturn it entirely. Groundwater behind the wall adds another layer of hydraulic pressure if not properly drained.
Retaining walls have been used for thousands of years, evolving from simple stone piles to today's sophisticated engineered systems. They are essential in residential and commercial construction, infrastructure development such as roadways and railways, and water management systems.
Main Types of Retaining Walls
Retaining walls come in several distinct types, each suited to different applications, heights, soil conditions, and budget constraints.
Gravity Walls are the oldest and most straightforward type. They rely entirely on their own mass and weight to resist the pressure from the retained soil. Constructed from heavy materials such as stone, mass concrete, or composite materials, these walls must be massive enough to stay in place through sheer weight alone.
Gravity walls typically have a slight setback or "batter," leaning back into the retained soil to improve stability. For landscaping applications, dry-stacked stone or segmental concrete units are common. Traditionally, gravity walls must be at least 50 to 60 percent as deep (thick) as they are tall. Modern gravity walls often incorporate reinforcement—such as geosynthetics or steel—within the backfill soil, creating a composite gravity wall that can reach greater heights.
Gabion walls are a popular subtype of gravity wall, constructed from wire baskets filled with rock. They are flexible, free-draining, and aesthetically pleasing—they can even be planted with vegetation.
Cantilever Walls are made from a relatively thin stem of steel-reinforced cast-in-place concrete or mortared masonry, often shaped like an inverted T. These walls work like a beam: they cantilever loads from the vertical stem to a large structural footing, converting horizontal pressures from the retained soil into vertical pressures on the ground below.
Cantilever walls are the most common type for taller retaining structures in modern construction. They are more economical than gravity walls for medium heights because they use reinforced concrete's tensile strength rather than relying solely on mass. For very tall walls or those supporting heavy loads, buttresses or counterforts may be added to improve stability.
Sheet Pile Walls are thin walls formed by driving interlocking sheets—typically steel, vinyl, or precast concrete—directly into the ground. They are used in tight spaces, for deep excavations, and for work below the water table.
These walls derive their stability from the bending resistance of the piles embedded deep in the ground. They can be supplemented with anchors drilled into the ground behind the wall to provide extra lateral restraint. Sheet pile walls are commonly used for waterfront structures, temporary shoring, and projects where space is extremely limited.

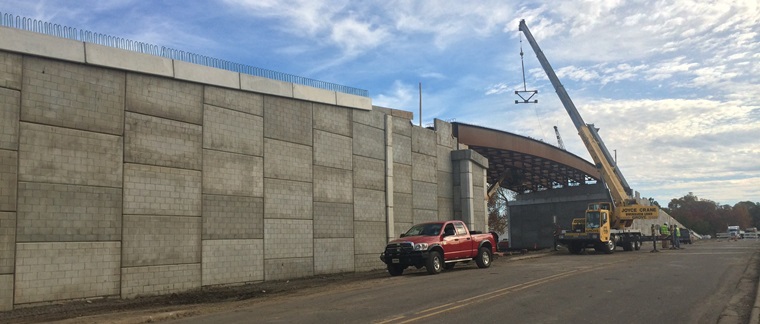

Mechanically Stabilized Earth (MSE) Walls represent a revolutionary approach to earth retention. Instead of relying on a massive concrete structure, MSE walls consist of a rigid face tied back with horizontal reinforcement elements embedded in the soil behind the wall. These reinforcements—which can be steel straps or geosynthetics—are spaced throughout the height of the wall and connected to the facing.
The reinforcement creates a composite soil mass that behaves like a gravity wall but at a fraction of the material cost. MSE walls are typically 25 to 50 percent less expensive than cantilever concrete walls for heights above 10 feet, which is why transportation agencies use them almost exclusively for highway retaining walls.
Geosynthetic Reinforced Soil (GRS) Walls are a relatively new technology that takes the concept of soil reinforcement a step further. While MSE walls are classified as externally stabilized walls (the reinforcements primarily prevent deformation of the wall face), GRS walls are internally stabilized—the soil and reinforcement work together as a composite material.
GRS walls are constructed using well-compacted soil between closely spaced reinforcement layers. The close spacing allows the wall face to be flexible, non-rigid, and non-load bearing. This flexibility offers significant advantages: GRS walls can tolerate larger differential settlements, are faster to construct, and often cost less than conventional alternatives. The concept of reinforcing soil is not new—evidence dates back to the construction of the Great Wall of China—but modern geosynthetic technology has transformed what is possible.
Geosynthetics Used in Retaining Wall Structures
Geosynthetics have become essential in modern earth retention systems, offering durable, economical, and flexible solutions compared to traditional gravity structures. These synthetic materials interact with soil to provide reinforcement, drainage, filtration, separation, and erosion control.
Geogrids are the most widely used geosynthetic for retaining wall reinforcement. These are high-strength polymer mesh materials—typically made from polyester (PET) or HDPE that provide tensile strength to hold soil together.
Geogrids function like steel reinforcement in concrete: they act as tensile elements within the reinforced fill, creating a composite material with vastly improved strength. The grid's open structure allows soil particles to interlock with the apertures, creating a mechanical bond that resists pullout.
Uniaxial geogrids are designed for applications where reinforcement is needed in one primary direction—such as retaining walls where tension acts horizontally. Biaxial geogrids provide reinforcement in two directions and are used for ground stabilization beneath and around walls. High-strength geogrids can achieve tensile strengths up to 1200 kN/m with extremely low elongation at break (≤12%), ensuring minimal unacceptable deformation. They are robust enough to withstand the high installation loads from backfill compaction.
Geotextilesare permeable fabric materials that serve multiple functions in retaining wall systems. As reinforcement, geotextiles can be used similarly to geogrids, providing tensile strength within the soil mass. Woven geotextiles, in particular, offer high tenacity and low creep, making them suitable for long-term reinforcement applications.
As filtration and drainage materials, geotextiles allow water to pass through while retaining soil particles—acting like a sand filter. This prevents soil erosion and migration while relieving hydrostatic pressure behind the wall. Nonwoven geotextiles are especially effective for filtration, preventing washout of fine soil particles.
As separation layers, geotextiles prevent the mixing of different soil types, maintaining the integrity of each layer and preventing contamination of drainage systems.
Geocells are three-dimensional, honeycomb-like structures made from polymeric strips connected together. When expanded and filled with soil, they create a cellular confinement system that significantly increases soil stability.
Geocell retaining wall systems allow vegetated walls with near-vertical faces to be built quickly and easily. The structure is formed from horizontal layers of geocell panels, each expanded and filled layer by layer until the desired height is achieved. These systems are particularly valued for their sustainability, using site-won materials as fill and allowing green, vegetated finishes.
Geonets and Geocomposites
Geonets are primarily used for drainage applications. These are three-dimensional grid structures that provide high in-plane flow capacity, allowing water to drain efficiently from behind the wall.
Geocomposite drainage combine a drainage core (geonet or geospacer) with geotextiles bonded to one or both surfaces. These lightweight, easy-to-handle systems offer a factory-controlled, environmentally friendly alternative to traditional drainage methods such as graded stone. A single geocomposite drain can have an in-plane flow capacity equivalent to 12 inches of sand.These composite systems collect and redirect excess water, preventing the accumulation of hydrostatic pressure—one of the leading causes of retaining wall failure.
Erosion Control Products
Erosion control mats are used to protect exposed soil surfaces on steep slopes and wall faces. These mats prevent soil washout between reinforcement layers and can be infused with grass seed to create vegetated, environmentally friendly finishes.
Why Geosynthetics Are Transforming Retaining Wall Construction
The adoption of geosynthetics in retaining wall construction has been driven by several compelling advantages:
Cost Efficiency: Geosynthetic-reinforced walls are significantly less expensive than conventional concrete structures, particularly for heights above 10 feet. They reduce material use, lower transportation costs, and minimize environmental impact.
Speed of Construction: Geosynthetic systems can be built faster than cast-in-place concrete walls, with simpler equipment and less specialized labor.
Flexibility and Durability: Unlike rigid concrete walls, geosynthetic-reinforced structures can accommodate differential settlements without cracking. This often eliminates the need for expensive foundation improvements.
Sustainability: Geosynthetics are lightweight and easy to transport. Combined with locally available soils, they reduce project costs, minimize land disturbance, conserve aggregates, and control soil erosion. In remote locations, steeper reinforced structures minimize footprint, excavation, and the volume of imported materials.
Design Flexibility: Geosynthetic systems can be constructed to significant heights and can carry large loads. They can be finished with a variety of facings—from rigid concrete panels and modular blocks to flexible wraps, wire baskets, and vegetated slopes—depending on aesthetic requirements and deformation tolerances.
Conclusion
Retaining walls are essential structures that enable us to shape our built environment, creating level ground on slopes, protecting infrastructure, and preventing erosion. From ancient gravity walls to modern Geosynthetic Reinforced Soil systems, the technology has evolved dramatically. Today, geosynthetics—geogrids, geotextiles, geocells, geonets, and geocomposites—have become indispensable tools in the engineer's toolkit. They offer cost-effective, durable, and sustainable solutions that outperform traditional methods while reducing environmental impact.
Whether supporting a highway embankment, creating a terraced garden, or protecting a waterfront development, modern retaining walls owe their strength and reliability to the innovative use of geosynthetic materials. As the technology continues to advance, we can expect even taller, more resilient, and more sustainable earth retention systems in the years to come.
