What Is a Geocell?

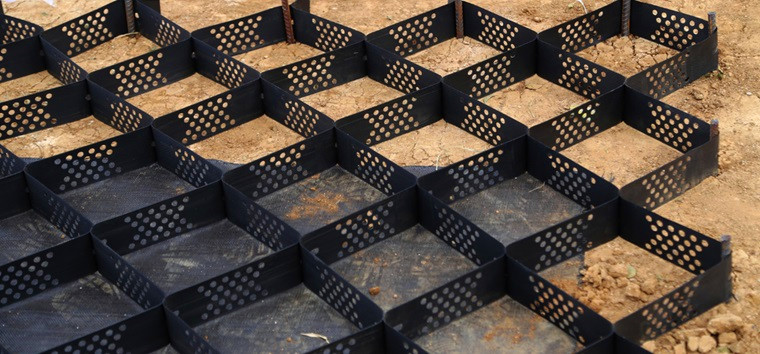

A geocell – also known as a cellular confinement system (CCS) – is a three‑dimensional, honeycomb‑like geosynthetic product used to stabilize soil, support loads, control erosion, and retain earth. When expanded on site and filled with granular materials (sand, gravel, crushed stone, or even topsoil), the interconnected cells form a stiff, load‑bearing matrix that confines the infill and distributes applied loads over a wide area.
The concept is deceptively simple: by confining fill material within individual cells, lateral movement is prevented, and the fill becomes a coherent, semi‑rigid slab. This “mattress effect” allows weak subgrades to carry heavy traffic, steep slopes to resist erosion, and near‑vertical walls to stand securely – all with significantly less material than conventional concrete or masonry structures.
Modern geocells are typically manufactured from high‑density polyethylene (HDPE) or advanced polymeric alloys. They are delivered flat (folded like an accordion) and expanded on site, making transport and handling exceptionally economical.
How Do Geocells Work?
The working principle relies on three key mechanisms:
- Lateral confinement – each cell prevents the infill from spreading sideways under load, forcing the material to act as a confined column.
- Load distribution – vertical stresses are transferred laterally through the cell walls, spreading the load over a much larger area of the underlying soil.
- Tensile reinforcement – the polymeric walls provide tensile resistance, further enhancing the composite strength of the filled system.
Unlike two‑dimensional planar reinforcements (such as geogrids), geocells offer three‑dimensional confinement that outperforms simple tensile reinforcement in many scenarios. They do not require pre‑tensioning, and they can accommodate moderate differential settlements without cracking – a major advantage over rigid concrete slabs.
Main Types of Geocells
Geocell systems vary in material, geometry, and intended function. The main categories are:
By Material
- HDPE geocells – the most common type, offering excellent chemical resistance, durability, and flexibility over a wide temperature range.
- Advanced polymer‑alloy geocells – formulated for higher stiffness, lower creep, and extended design life (up to 100 years) under heavy static or dynamic loads.
- Sustainable / biodegradable geocells – made from natural fibers (e.g., jute) for temporary applications, capable of improving bearing capacity by over 100% in weak soils while eventually decomposing.
By Physical Configuration

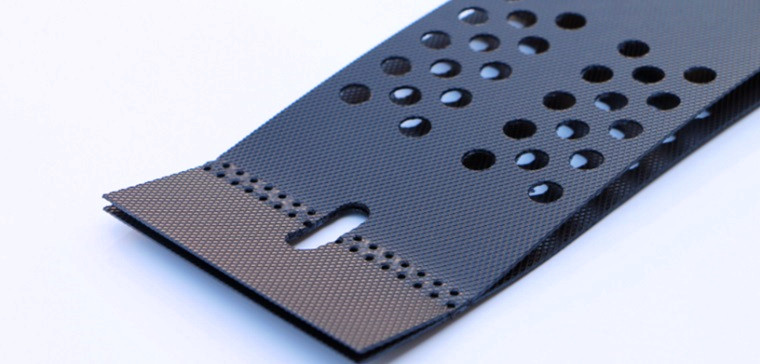

- Perforated geocells – have openings in the cell walls (typically up to 20% of wall area) to allow water drainage and root growth; used for vegetated slopes and erosion control.
- Non‑perforated geocells – provide full containment of infill, used with concrete or fine aggregates where no water exchange is desired.
- Variable cell heights – ranging from 50 mm (for shallow slope protection) to 200 mm or more (for heavy‑duty load support and retaining walls).
By Structural Role in Retaining Applications
- Gravity‑type geocell walls – self‑standing structures that rely on the mass of soil‑filled cells to resist lateral earth pressure; no additional horizontal reinforcement is required.
- Reinforced (MSE‑type) geocell walls – combined with horizontal geogrid layers to create taller, steeper walls for highway embankments and large‑scale earth‑retention projects.
Applications of Geocells
Geocells are among the most versatile geosynthetic products, serving a wide spectrum of civil, environmental, and infrastructure projects.
1. Load Support and Pavement Stabilization
In road construction, geocells are placed beneath the base course to reinforce both paved and unpaved surfaces. They reduce rutting, prevent aggregate migration, and allow construction over soft subgrades (such as clay or peat) without deep excavation or thick aggregate layers. Typical uses include:
- highways and local roads
- parking lots and access tracks
- airport runways and taxiways
- railway ballast reinforcement
- industrial working platforms
- port and container yards
2. Slope Stabilization
On steep embankments and cuttings, geocells confine topsoil or granular fill, resisting gravitational sliding and surface erosion caused by rainfall runoff. The cell walls create individual “micro‑basins” that retain moisture and seeds, promoting lush vegetation even on slopes up to 45°. This is widely applied to:
- highway and railway embankments
- landfill final covers
- dam and reservoir slopes
- mined land reclamation
- residential landscaping on steep lots
3. Erosion Control and Channel Protection
Geocells provide a flexible, durable lining for hydraulic structures. Filled with topsoil and vegetation, they form a green, erosion‑resistant surface; filled with concrete or aggregate, they become a hard‑armored channel lining that can withstand high‑velocity flows. Common applications include:
- stormwater drainage channels
- culvert outfalls and spillways
- riverbanks and shorelines
- irrigation canals and drainage ditches
- geomembrane‑lined channels (to protect the liner from UV and mechanical damage)
4. Retaining Walls
Geocell retaining walls offer a green, cost‑effective alternative to traditional concrete or masonry walls. The open‑cell structure allows planting of native vegetation, creating a natural appearance while providing structural stability. Advantages include:
- aesthetics – a living, green wall that blends with the landscape
- flexibility – accommodates settlement without cracking
- rapid construction – no formwork or curing time; each layer is stable as soon as it is filled
- permeability – allows stormwater infiltration, reducing runoff
- use of on‑site materials – reduces haulage and import costs
- seismic resilience – flexible system performs well in earthquake‑prone areas.
5. Sustainable Drainage Systems (SuDS) and Environmental Restoration
Because geocells are highly permeable and can be filled with vegetation, they are increasingly specified in Sustainable Drainage Systems (SuDS) to manage surface water naturally. They also contribute to:
- green roofs and vertical gardens
- tree root protection in urban settings
- wetland and shoreline restoration
- temporary access roads in environmentally sensitive areas
Advantages of Geocell Technology
The growing popularity of geocells stems from several tangible benefits:
- Cost efficiency – less aggregate is required, and local fill can often be used, reducing material and transport costs.
- Speed of installation – lightweight, folded panels are quickly expanded and filled, significantly shortening construction schedules compared to cast‑in‑place concrete.
- Sustainability – lower carbon footprint, reduced quarrying, and the ability to create vegetated surfaces all contribute to green building certifications.
- Durability – HDPE and advanced polymers resist corrosion, rotting, and chemical attack, ensuring long service life even in harsh environments.
- Flexibility – the system accommodates settlement and thermal movement without structural distress, reducing maintenance needs.
Conclusion
Geocells have revolutionized the way engineers approach soil stabilization, slope protection, and earth retention. By harnessing the power of three‑dimensional confinement, these honeycomb‑like structures transform weak, loose soils into strong, stable foundations – at a fraction of the cost and environmental impact of conventional methods.
From highways over soft ground to vegetated retaining walls that beautify our cities, from erosion‑proof channels to resilient railway beds, geocells offer a proven, versatile, and future‑ready solution. As infrastructure demands grow and sustainability becomes paramount, cellular confinement systems will undoubtedly play an increasingly central role in building a resilient and environmentally responsible world.
